| DMN4015LK3-13 | |
|---|---|
| Part Number | DMN4015LK3-13 |
| Manufacturer | Diodes Incorporated |
| Description | MOSFET N-CH 40V 13.5A DPAK |
| Quantity Available | 50640 pieces |
| Datasheets | DMN4015LK3-13.pdf |
| DMN4015LK3-13 Price | Request Price & Lead Time Online or Email us: [email protected] |
| Technical Information of DMN4015LK3-13 | |||
|---|---|---|---|
| Manufacturer Part Number | DMN4015LK3-13 | Category | Discrete Semiconductor |
| Manufacturer | Diodes Incorporated | Description | MOSFET N-CH 40V 13.5A DPAK |
| Package / Case | Tape & Reel (TR) | Quantity in 7 days | 39551 |
| Series | - | Packaging | Tape & Reel (TR) |
| FET Type | N-Channel | Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40V | Current - Continuous Drain (Id) @ 25°C | 13.5A (Ta) |
| Vgs(th) (Max) @ Id | 3V @ 250µA | Gate Charge (Qg) (Max) @ Vgs | 42nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 2072pF @ 20V | FET Feature | - |
| Power Dissipation (Max) | 2.19W (Ta) | Rds On (Max) @ Id, Vgs | 15 mOhm @ 14A, 10V |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |

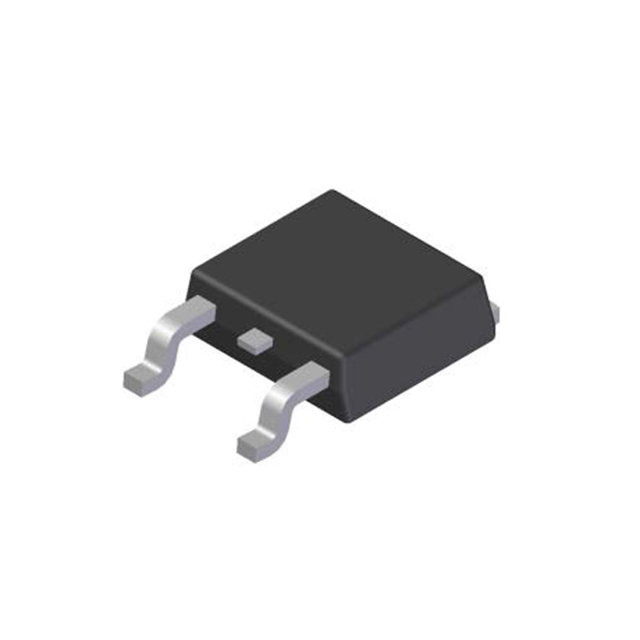

| Supplier Device Package | TO-252-3 | Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
